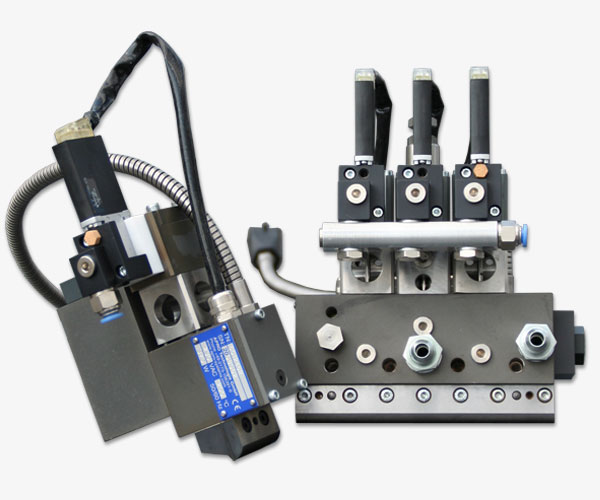

slot nozzle HMC45NV intermittient coating head for high speed applications
APRO slot applicator series HMC45NV have been developed for fast intermittent coating applications. We use the well known snuffback valve technology, where the valve operates in the opposite direction to the adhesive flow. This guarantees an optimized, very sharp and precise cutoff. All of our applicators are available as return flow systems if needed. APRO has specific know-how for years to identify and realize your needs.
Technical data
| operating voltage | 120/240 VAC PNPE |
|---|---|
| frequency | 50/60 Hz |
| sensor | PT100 - NI120 - Fe/Ko - NTC |
| temperature range | 20-200 °C |
| glue pressure | max. 10MPa (100 bar) |
| air pressure | 600 kPa (6 bar) |
| max. coating width | 1.100 mm |
| max. total width | 1.200 mm |
| coat weight | 18 - 200 g/m² |
| valve speed | 4.000/min. |
Application area:
hygiene industry, medical industry, packaging industry, paper converting industry, filter industryProduct Request Download Datasheet
