slot applicator HMC60 for continuous coatings between 0,8 and 25 g/m²

APRO slot applicator series HMC60 were designed for continuous applications with low coat
weights. The well known control modules HMC45 combined with an optimised slot nozzle design and a highly accurate cross section glue distribution allow coat weights of 0,8 g/sqm. These open porous coatings are used to manufacture breathable medical composites. You can also apply thin layers of adhesive with a closed surface up to 25 g/sqm.

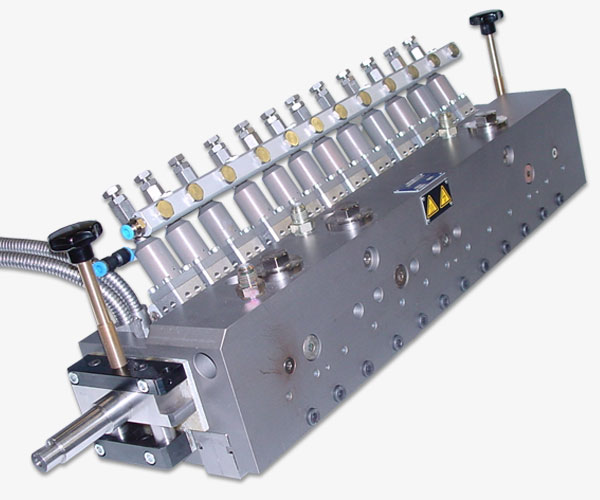

slot applicator HMC60 + click to enlarge

Technical data

operating voltage 120/240 VAC PNPE
frequency 50/60 Hz
sensor PT100 - NI120 - Fe/Ko - NTC
temperature range 20-200 °C
glue pressure max. 10MPa (100 bar)
air pressure 600 kPa (6 bar)
coating width 200 - 1.500 mm
total width 300 - 1.600 mm
coat weight 1 - 25 g/m²

Application area:

hygiene industry, medical industry, paper converting industry, film converting, filter industry, textile industry, automotive industry
