bead applicator Mini-App with 1 - 20 modules

APRO Mini-App applicator heads have been developed for high-speed applications. The applicators comply with all present technical and safety relevant requirements. The single module Mini-App 1 is available as well as customized solutions.

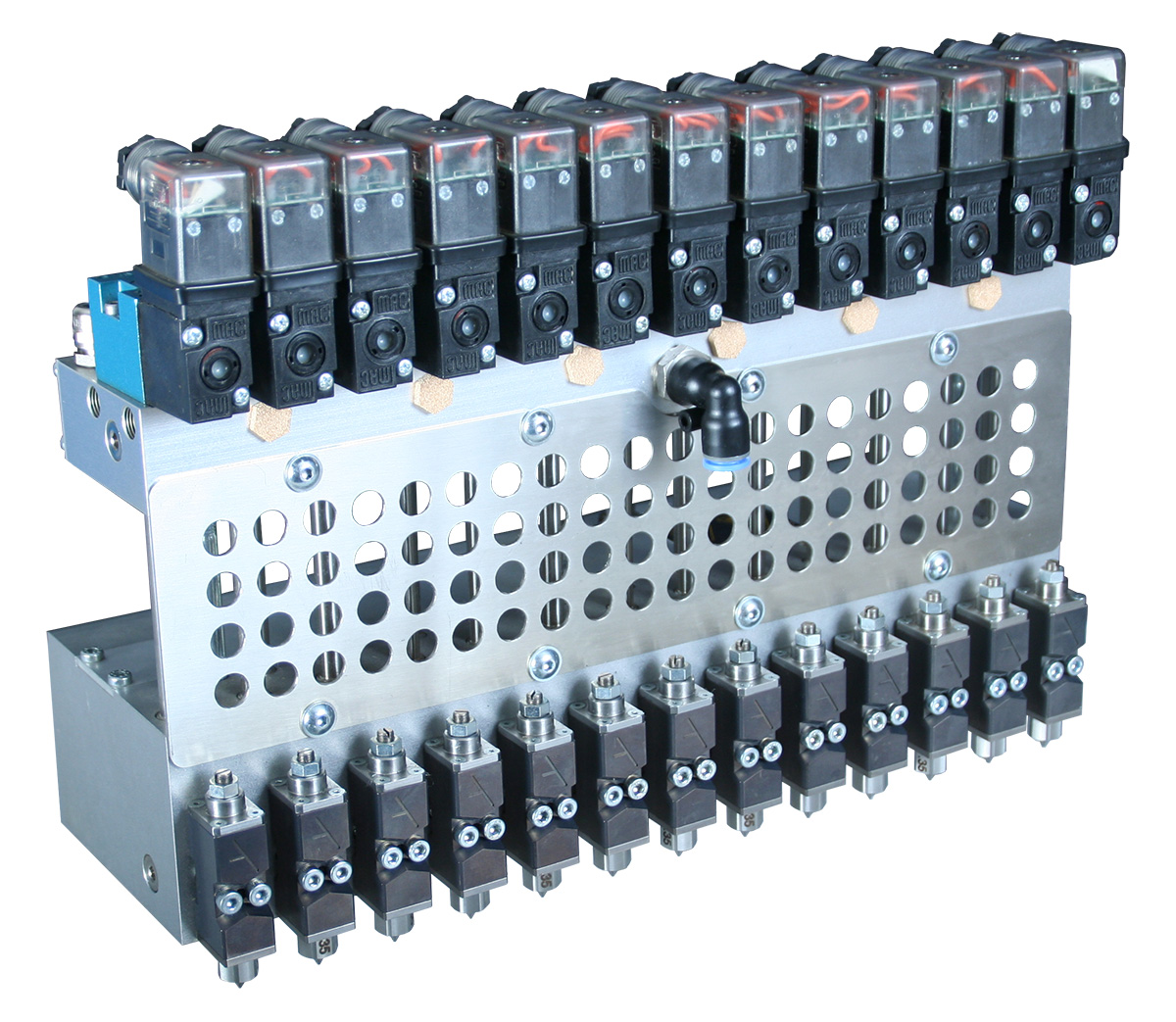

bead applicator Mini-App + click to enlarge

Technical data

operating voltage 120/240 VAC PNPE
frequency 50/60 Hz
sensor PT100 - NI120 - Fe/Ko - NTC
temperature range 20-200 °C
glue pressure max. 10MPa (100 bar)
air pressure 600 kPa (6 bar)
max. total width 1.000 mm
valve speed 10.000/min.

Application area:

hygiene industry, packaging industry, paper converting industry, filter industry, product assembly
