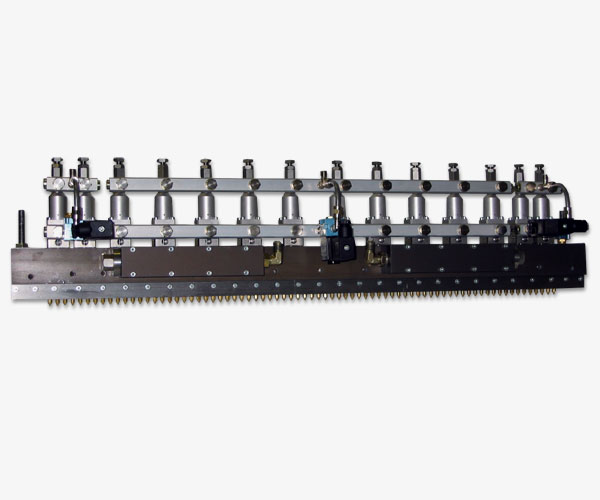

multiline applicator HMC45-ML for continuous applications
APRO multiline applicators were designed for continuous laminating applications. We manufacture 2 different series. Our series HM45-ML uses the control valve HM45 which can be mounted with a min. 30 mm spacing. The line distance is min. 2 mm and will be manufactured individually. The openings are realised by 3 shims, we call it a shim package. For large applications we will mount gear pumps directly onto the applicator. This is also an option for the application of difficult adhesives and sealants.
Technical data
| operating voltage | 120/240 VAC PNPE |
|---|---|
| frequency | 50/60 Hz |
| sensor | PT100 - NI120 - Fe/Ko - NTC |
| temperature range | 20-200 °C |
| glue pressure | max. 10MPa (100 bar) |
| air pressure | 600 kPa (6 bar) |
| max. coating width | 1.450 mm |
| min. bead distance | 2 mm |
| coat weight | 0,8 - 200 g/m² |
Application area:
medical industry, film converting, filter industry, textile industryProduct Request Download Datasheet
