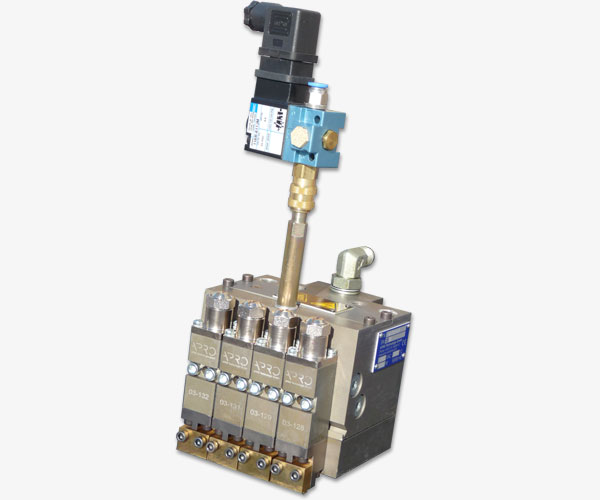

multiline applicator HM4000-ML for continuous applications
APRO multiline applicators were designed for continuous laminating applications. We manufacture 2 different series. Our series HM4000-ML uses the proven applicator module A200- Pro. The module spacing can be 22,5 mm or larger. The bead spacing depends on the type of nozzle being used. You can either apply 1 bead of adhesive per module or up to 7 lines.
Technical data
| operating voltage | 120/240 VAC PNPE |
|---|---|
| frequency | 50/60 Hz |
| sensor | PT100 - NI120 - Fe/Ko - NTC |
| temperature range | 20-200 °C |
| glue pressure | max. 10MPa (100 bar) |
| air pressure | 600 kPa (6 bar) |
| max. coating width | 1.000 mm |
| min. module spacing | 22,5 mm |
| min. bead distance | 3 mm |
| coat weight | 0,8 - 200 g/m² |
Application area:
medical industry, film converting, filter industry, textile industryProduct Request Download Datasheet
