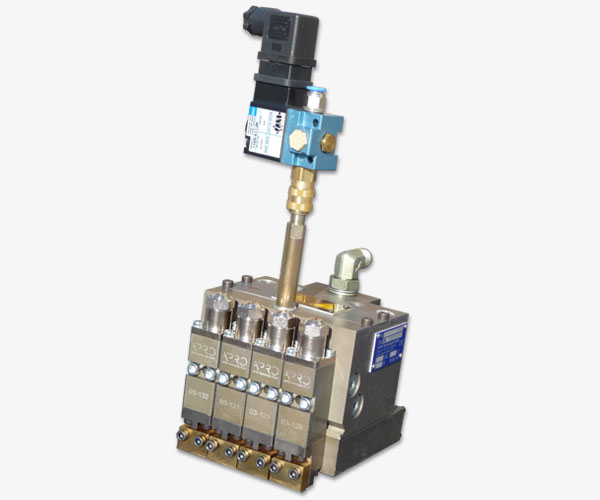

spray applicator HMS4000-Summit standard heads with 1 - 24 modules A200-SU-PRO
APRO spray applicators have been developed for use in rough industrial environment. The applicators comply with all present technical and safety relevant requirements. We are able to supply the 2 most common styles of spray application called controlled fiberization CF and Summit, the little swirl spray pattern with 1-4 openings at one nozzle. CF allows up to 25 mm wide patterns with one module, Summit can go down to 3 mm with one hole and 24 mm with 4 holes per module.
Technical data
| operating voltage | 120/240 VAC PNPE |
|---|---|
| frequency | 50/60 Hz |
| sensor | PT100 - NI120 - Fe/Ko - NTC |
| temperature range | 20-200 °C |
| glue pressure | max. 10MPa (100 bar) |
| air pressure | 600 kPa (6 bar) |
| max. coating width | 600 mm |
| valve speed | 2.000/min. |
Application area:
hygiene industry, medical industry, packaging industry, paper converting industryProduct Request Download Datasheet
