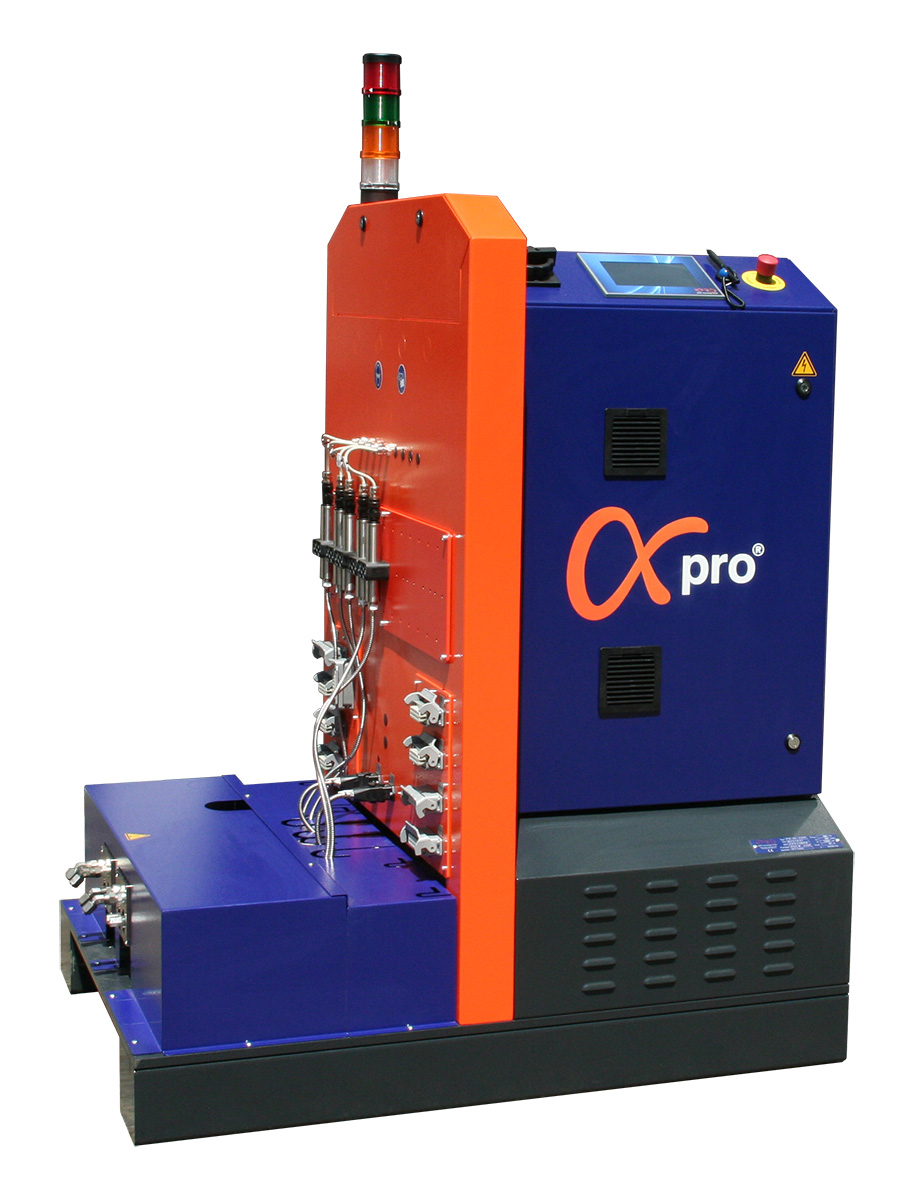

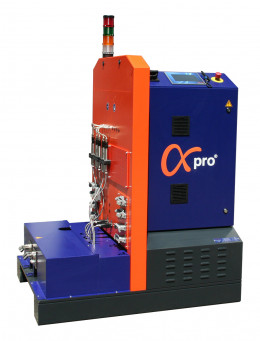

pump station PS-M
Since 2016 we manufacture pump station based on our design platform for large melt units. Pump stations are used when hotmelt adhesive is provided in 200 liter drums, a hopper should be avoided and the adhesive has to be precisely delivered to the applicator. The pump station can be fitted with up to 4 dual stream gear pumps.
Technical data
| operating voltage | 230/400 VAC PNPE |
|---|---|
| frequency | 50/60 Hz |
| sensor | PT100 oder Ni120 |
| weight | ca. 200 kg |
| temperature range | 20-200 °C |
| glue pressure | max. 10MPa (100 bar) |
Application area:
hygiene industry, paper converting industry, filter industry, textile industryProduct Request Download Datasheet
