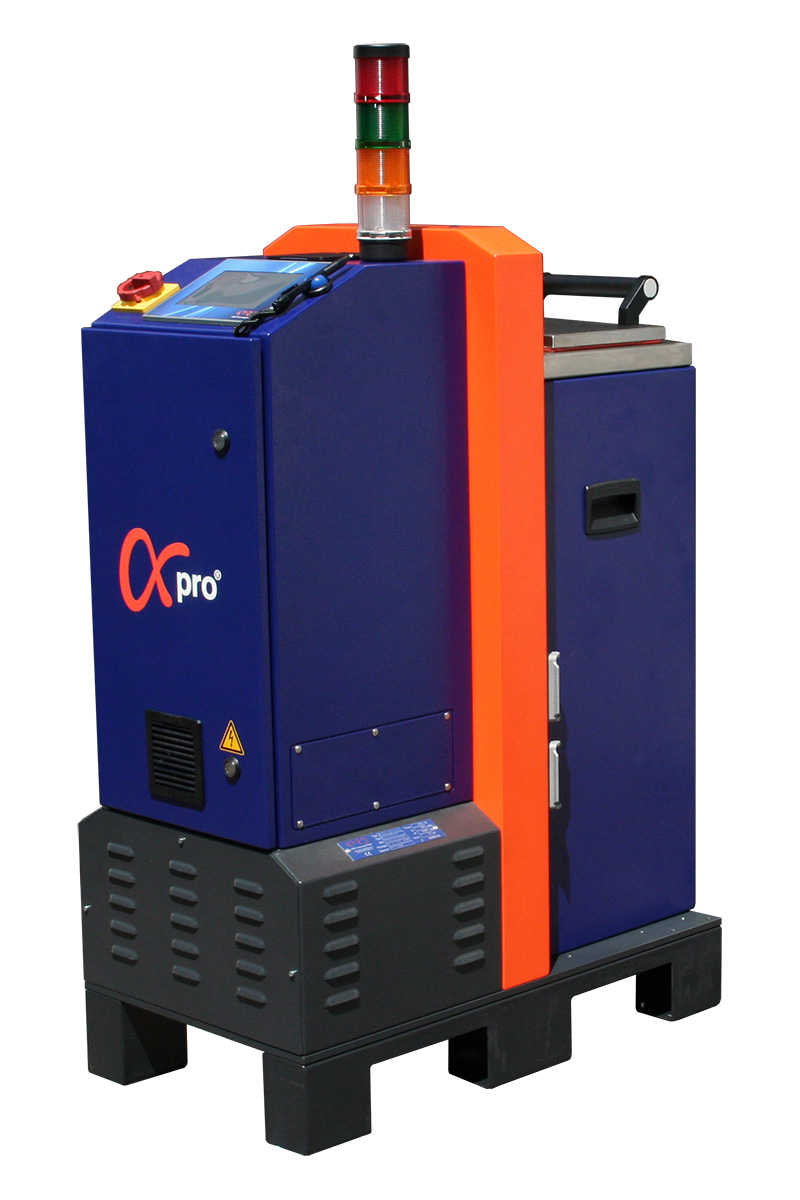

series alpha pro 12-24 ltr.

Since 2020 we now have our new small melt units, designed on the reliable concept of our large systems, modular and flexible. The 12 and 24 liter melters can be fitted with up to 2 dual stream gear pumps or with 1 large gear pump.

series alpha pro 12-24 ltr.

Technical data

operating voltage 230/400 VAC PNPE
frequency 50/60 Hz
sensor PT100 oder Ni120
melt rate 12 ltr. max. 12 kg/h
melt rate 100 ltr. max. 30 kg/h
weight a. 170 kg
temperature range 20-200 °C
glue pressure max. 10MPa (100 bar)
air pressure 600 kPa (6 bar)

Application area:

hygiene industry, packaging industry, paper converting industry, filter industry, product assembly
