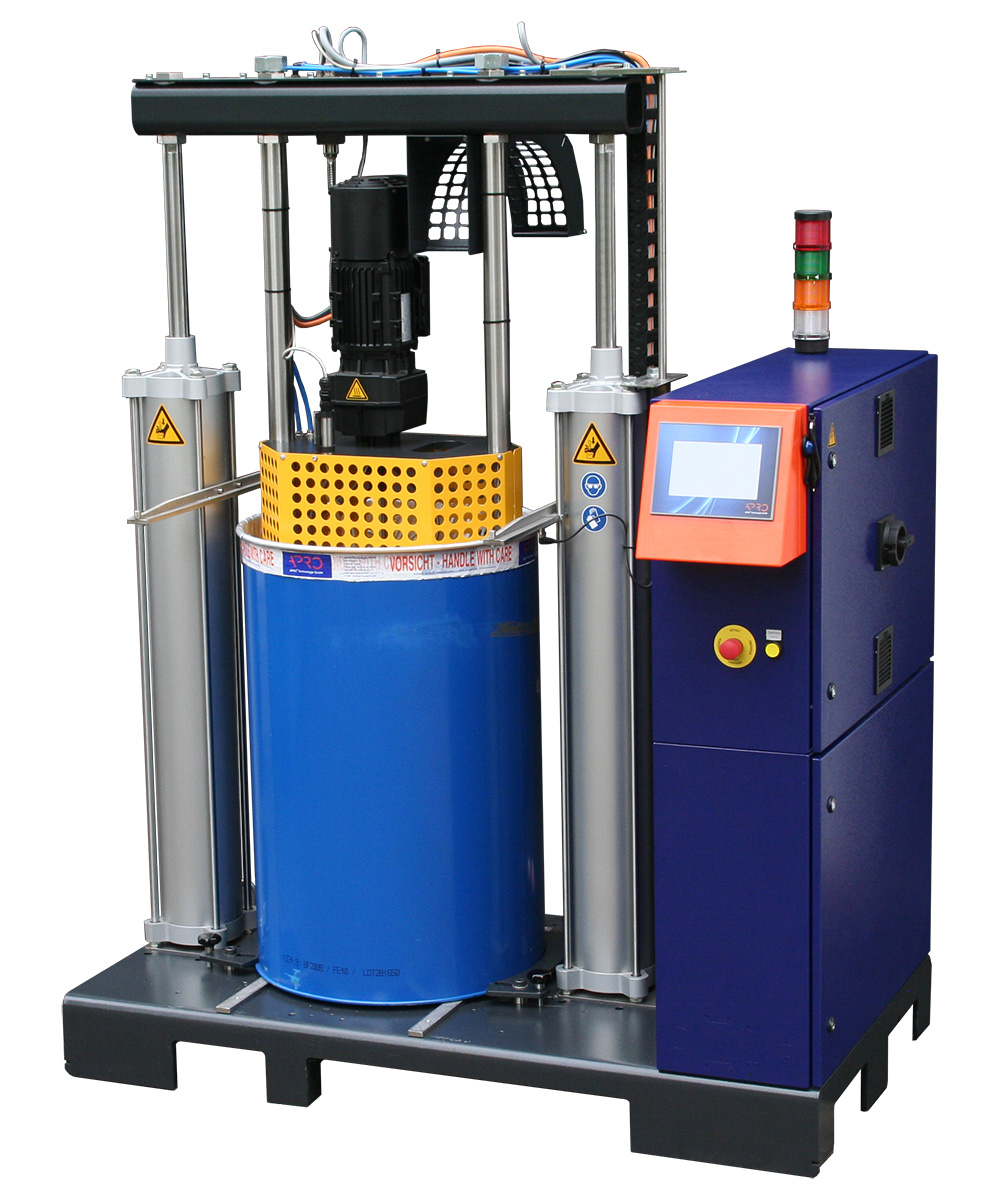

drum melter FS200 with gear pump
APRO drum melters are used for melting and delivering high amounts of hotmelt adhesive. If an adhesive supply unit is not capable to melt the required amount of adhesive in time, or the glue will be only available in drums, drum melters are used. They melt and deliver the adhesive carefully and in most cases keep up the level of a melt unit or reservoir. For even higher requirements 2 bulk melters will we arranged to a tandem unit.
Technical data
| operating voltage | 400 VAC, 3 PNPE |
|---|---|
| frequency | 50/60 Hz |
| heating power | 24.000 Watt |
| melt rate | 60-200 kg/h, materialbedingt |
| pump rate | 10-300 kg/H |
| sensor | PT100 - NI120 - Fe/Ko |
| temperature range | 20-230 °C |
| glue pressure | bis 10 MPa (100 bar) |
| air pressure | 600 kPa (6 bar) |
Application area:
paper converting industry, filter industry, textile industry, automotive industryProduct Request Download Datasheet
