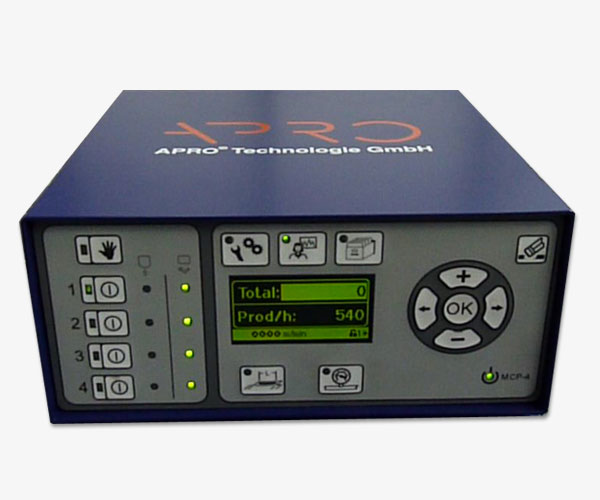

pattern controller MCP4 for intermittent applications up to 600 m/min (2.000 ft/min.)
Our pattern controller MCP4 is capable of line speeds up to 600 m/min - 2.000 ft/min. The controller can apply up to 10 beads per trigger signal. This is possible for each single output channel. The controller has a short circuit proof power supply with 150 watts total output.
Technical data
| operating voltage | 230 VAC PNPE |
|---|---|
| frequency | 50/60 Hz |
| outputs | 4 |
| power per output | 24 VDC, max. 25 W |
| (trigger) inputs | 4 |
| encoder input | 1 |
| line speed signal | 2x 0-10 VDC |
Application area:
packaging industry, paper converting industry, filter industry, product assemblyProduct Request Download Datasheet
