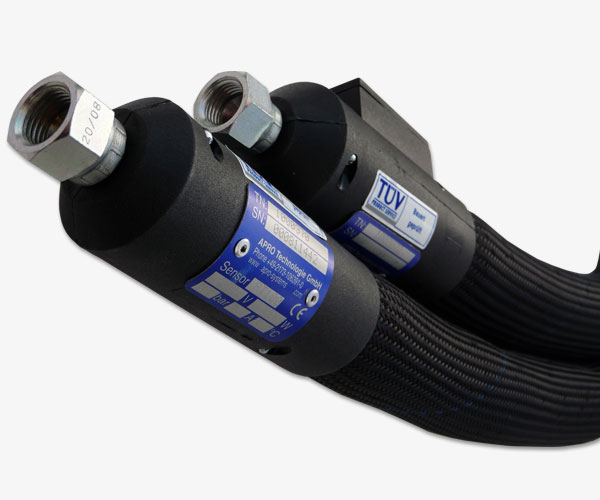

heated hose APRO 0,6 to 20 m long, 6 to 32 mm internal diameter
APRO heated hoses have a TÃœV industrial design assessment and are developed for the use in rough industrial environment. We differentiate heated hoses in between a lot of features beside the length and the cross section which we call internal diameter I.D. Features are for example waterproof sleeves and connectors, the operating pressure, the operating temperature, an optional air line and/or wires running down the hose to connect an air heat exchanger or a second heating zone of the applicator, a thin and flexible or corrugated sleeve for the use with handguns.
Technical data
| operating voltage | 120/240 VAC PNPE |
|---|---|
| frequency | 50/60 Hz |
| sensor | PT100 |
| temperature range | 20-200 °C |
| glue pressure | max. 10MPa (100 bar) |
| I.D. | 8-10-13-16-20-25 mm |
Application area:
everywhere, when hotmelt is in useProduct Request Download Datasheet
